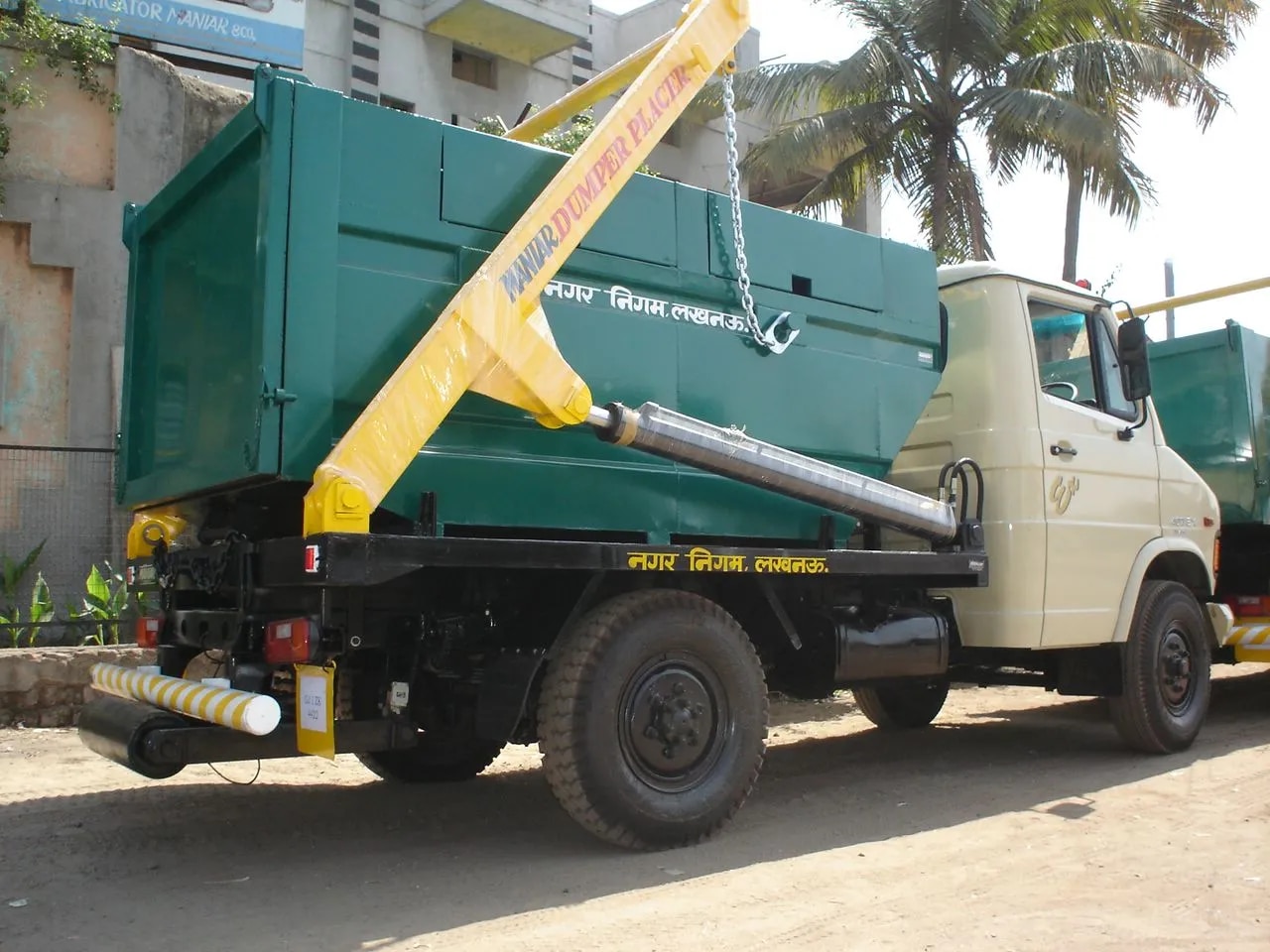

In this system garbage / refuse is directly collected into containers which are placed at the various collection points. The MANIAR CONTAINER CARRIER SYSTEM gripped firmly and safely the loaded container transport it to the dumping site and then container is tipped to discharge its load. The system comprises of a pair of powerful hydraulic arms with parallel linkage system. The system is unique, easy operation, hygienic in keeping city clean, flexible method of handling debris / garbage / refuse and discarded building materials. This operation manual is primarily concerned with MANIAR CONTAINER CARRIER SYSTEM including its operation and maintenance instruction. In addition general safety and list of parts are also included. Specification: Vehicle: 1 ton - 16 ton Capacity: Suitable for 1 CUM- 9CUM containers Model: 1) Rear Lifting 2) Side Lifting ( Twin Dumper Placer) Boom: Booms are made from MS Box section. 4 Nos. of heavy duty chain of suitable capacity is fitted with the booms for lifting, unloading and dumping of the container. Hydraulic Cylinder: 2 Nos. Tube: MS honed tube Rod: Induction hardened chrome plated piston rod made from EN 8 Pump: Gear Pump, drive taken from vehicle PTO. Hydraulic pump: Walvoil or equivalent make. Tipping Arrangement: Manual arrangement. Paint Two coats of Primer Two coats of final paint
