Home Products GARBAGE COMPACTOR/REFUSE COMPACTOR
Refuse Compactor has
Refuse Compactor has
COD available
GARBAGE COMPACTOR

GARBAGE COMPACTOR/REFUSE COMPACTOR

Share with
Share this on :

Description

Product details

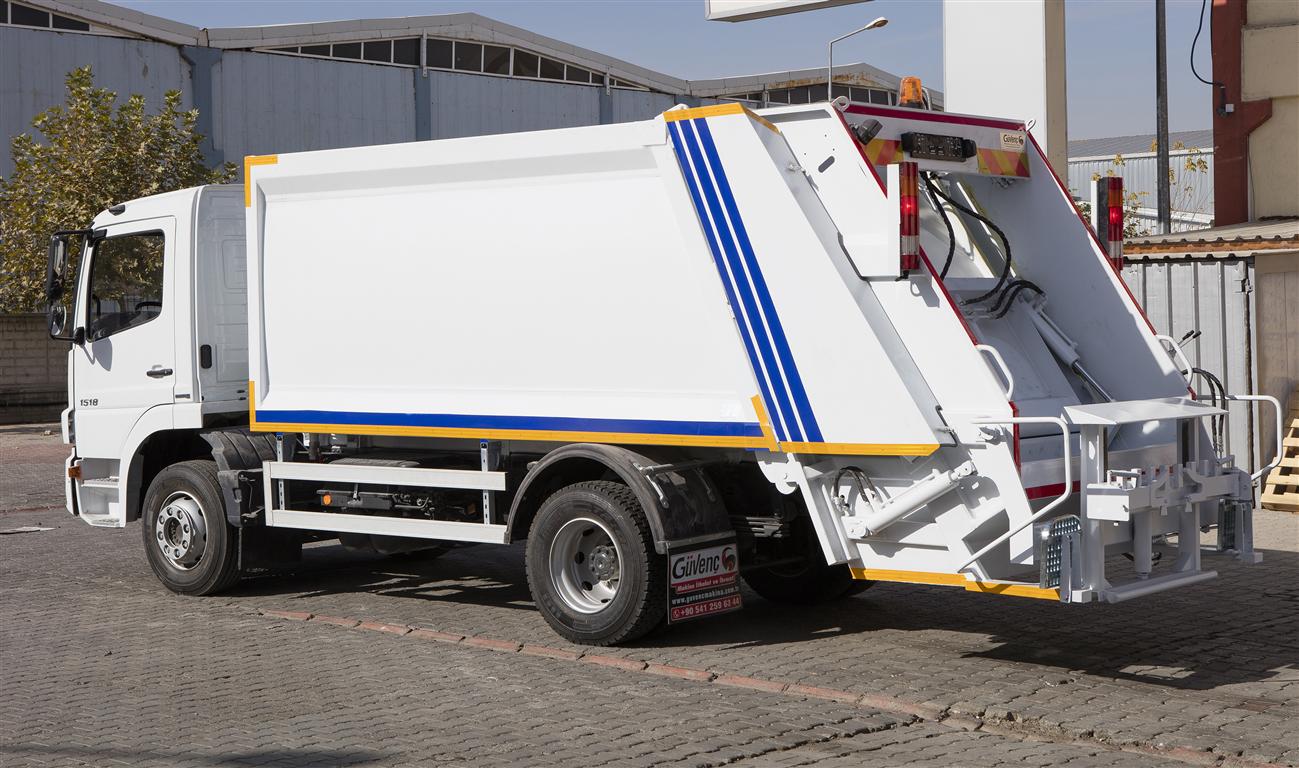

Refuse Compactor has a function to collect the waste from the container and reduce the volume inside the machine. The compaction of the garbage is done by the hydraulic and mechanical system. A compaction plate inside the machine has two functions. It is used for reducing the volume of the garbage and it is used to empty the garbage from the machine. Tail Gate Capacity: 1 CUM & 1.5 CUM Container Capacity: 7, 9, 11, 14 CUM Stiffner less body structure Bin Lifting Capacity: 200 Litre, 1.1 CUM All Hydraulic Operations. Suitable Trucks: TATA, Ashok Leyland, Eicher, SML

Keywords

  • Filter tags

Other Products

Related Products

MANIAR ‘GullyMan’ is an advanced technology with a blow-back system for cleaning cesspit, cesspool and manhole chambers. This Machine is capable of creating a very high degree of air pressure which breaks the silt sedimentation that gets accumulated at the bottom of the cesspit, cesspool and manhole chambers. It is equipped with major IMPORTED components including its unique heavy duty Vacuum Pump. It is capable of sucking particles up to 40 to 50mm dia along with sludge from a distance of 100 feet and depth up to 25 feet. The tank can be tilted (optional) at a specified angle and the hinged type rear door can be opened and closed hydraulically to drain out the collected liquid waste or silt. Utmost care has been taken to install adequate safety devices such as Auto shut-off valves, Imported Siphon filter, Safety pressure release valve, Quick release coupling are few safety features among those safety instruments, which ensure that the equipment operates with safety & avoid chances of occurrences of an accident. Tractor-drawn Trailer. Tyre: 7.50 X 16 Axle: 65 X 65 mm sq. bar Brakes: Internal expanding shoe brake acting on both wheels. Sludge Tank Capacity: 3500 Tank Mounting: Tank is mounted in a slope so that the sludge can be discharges by gravity or by pressurized discharge. Material: Mild Steel of 5 mm thickness Suction Pump: Imported Italian make Capacity: 216 m3/hr Power for Vacuum Pump: PTO of the Tractor. Suction Hose dia: 3
View Details
Trailer Mounted Suction Machine, GM-3500T
‘JETMAN’ High-Pressure Sewer Jetting Machine suitable for effective and efficient cleaning of chocked underground drainage/sewage lines. It is capable of cleaning chocked drainage/sewage lines ranging from 50mm dia to 900mm dia and more. The operation is carried out by a specially designed nozzle which delivers high-pressure water into the sewage/drainage lines. It is developed on HCV / LCV /MINI Truck, Trailer Chassis & 3 Wheeler Chassis depending upon the tank and pump capacity. Apart from specific Jetting Operation, this Multipurpose Machine can be used for Cleaning of Toilet Blocks, Foot Paths, Cleaning / Servicing of Vehicles and also to extinguish a small fire and to spray pesticide. __Working__ High pressure jetting is the preferred method of re-establishing water flow. It not only removes blockage but also washes away all debris found within the pipe. High-pressure water jet is faster and less labour intensive than use of a mechanical rodding or cable machines. High pressure jetting units maintain constant working pressure and cleaning power at the nozzle end while mechanical machines will lose cutting and torque power as rod or cable distances increase within pipelines from the point of entry. High pressure jetting has another advantage over cable or rodding machines. Where access is difficult, a lightweight, flexible jet hose is a safer and more practical solution. Pipelines that are suspended from ceilings or catwalks are easily cleaned using a high-pressure jetting hose rather than a heavy, cumbersome mechanical drain cleaning machine. Cleaning vertical stacks or vents is easier with a high pressure jetting unit and lightweight jetting hose than with heavy drain cleaning cables or rods. SPECIFICATION: VEHICLE: Three-wheeler chassis JETTING PUMP • MAKE: Imported ‘Comet’ Brand • CAPACITY: 13 LPM And Pressure up to 200Bar • R.P.M.: 3400 Construction & MATERIAL QUALITY • Forged brass pump head and conrods with high mechanical resistance and corrosion proof. • Highly efficient S.S check valve and piston guide. • Solid ceramic plunger highly corrosion and abrasion proof. • Adjustable unloaded with inner S.S parts and fitted with a check valve that ensures reliability and nozzle protection zero pressure in by-pass condition fixed and adjustable detergent ejector • Anodized aluminium die-cast crankcase fins that ensure grant optimal oil temperature. DRIVE: Direct Coupled With Diesel Engine ENGINE • MAKE /TYPE: GREAVES make 4 strokes, air-cooled, single piston diesel engine rope start or electric start • PERFORMANCE: 10 hp at 3000 rpm (NB-DIN 6270) • STARTER: Battery operated 12v .power required from vehicle’s battery. • RPM: 3000 TANK • Capacity: 500 Liters. • SHAPE: Cylindrical Horizontal Fitted. HOSE REEL •Horizontally Fitted Manually Operated Type •Fitted With Heavy Duty S.S Rotary Joint •Capable Of Winding 30M Long jetting Hose JETTING HOSE •TYPE: Special High-Pressure jetting Hose •HOSE I.D.: Ø ¼” •HOSE LENGTH: 30 m. WASHING/SPRAYING HOSE •TYPE: Special High-Pressure Washing Hose •HOSE I.D.: Ø 3/8” •HOSE LENGTH: 10 m. SPRAY GUN: Imported Comet makes spray gun, which can withstand pressure up to 300 bars. It is very useful for cleaning equipment/container cleaning and also useful for cleaning of toilets/roads/streets etc. SUCTION FILTER: Imported European AARAG make Y type filter VALVES 1. Lever operated 3 way L port high-pressure ball valve for main hose reel 2. Lever operated 3-way L port high-pressure ball valve for the auxiliary spray gun. 3. Drain valve ACCESSORIES AND SAFETY DEVICES 1. Heavy duty glycerin field pressure gauge having a pressure range of 0-300 kg/cm2 2. Flexible water level indicator 3. Suction filter to ensure the supply of clean water to the pump. 4. Water level alarm audio/visual 5. Focus light at front and rear 6. Searchlight with extendible wire 7. Tank filling cap at the top of the tank. Panelling: Paneling made from M.S sq. pipe /M.S angle and covered with 18 g alluminium sheet. REAR DOOR: Closed in compact hinged type rear door with locking arrangement for the protection of pump and other critical components. Paint Two coats of epoxy primer Two coats of PU paint
View Details
MULJET - 3 WHEELER
‘JETMAN’ High-Pressure Sewer Jetting Machine suitable for effective and efficient cleaning of chocked underground drainage/sewage lines. It is capable of cleaning chocked drainage/sewage lines ranging from 50mm dia to 900mm dia and more. The operation is carried out by a specially designed nozzle which delivers high-pressure water into the sewage/drainage lines. It is developed on HCV / LCV /MINI Truck, Trailer Chassis & 3 Wheeler Chassis depending upon the tank and pump capacity. Apart from specific Jetting Operation, this Multipurpose Machine can be used for Cleaning of Toilet Blocks, Foot Paths, Cleaning / Servicing of Vehicles and also to extinguish a small fire and to spray pesticide. __Working__ High pressure jetting is the preferred method of re-establishing water flow. It not only removes blockage but also washes away all debris found within the pipe. The high-pressure water jet is faster and less labour-intensive than the use of a mechanical rodding or cable machines. High pressure jetting units maintain constant working pressure and cleaning power at the nozzle end while mechanical machines will lose cutting and torque power as rod or cable distances increase within pipelines from the point of entry. High pressure jetting has another advantage over cable or rodding machines. Where access is difficult, a lightweight, flexible jet hose is a safer and more practical solution. Pipelines that are suspended from ceilings or catwalks are easily cleaned using a high-pressure jetting hose rather than a heavy, cumbersome mechanical drain cleaning machine. Cleaning vertical stacks or vents is easier with a high pressure jetting unit and lightweight jetting hose than with heavy drain cleaning cables or rods. Specification: Fresh Water Tank capacity: 3000 Liters Material: 5mm M.S Shape: Rectangular type, Embossed tank Drive to Pump: Through Tractor's PTO. Jetting Pump: Triplex plunger pump, Imported Italian make Capacity: Flow rate 100 LPM @ 120 bar pressure. Jetting Hose: Thermoplastic technopolymer. Two braided high tensile synthetic fibre reinforcement. Polyhose or Equivalent make Hose Reel: Hydraulic winding type. Capable of winding 60 meters long pressure sewer jetting hose. Jetting Nozzle: Two type of standard nozzles to be supplied 1. Bullet nosed with rearward facing angled jets to give self-propulsion for general purpose cleaning. 2. As above but with an additional forward facing jet fan for blockage cleaning. Washing Hose: 10 meters long 12mm I.D, Polyhose or equivalent make Suction Filter: Y- type imported make Handgun: Imported make spray gun, which can withstand the pressure up to 300 bars. It is very useful for cleaning equipment /container cleaning and also useful for cleaning of toilets/roads/street areas etc. Accessories and Safety: • Heavy duty glycerin field 100mm dia pressure gauge • Flexible water level indicator • Audio / visual type water level alarm • Spring loaded adjustable pressure relief valve Paint: • Epoxy Primer • Two coat of synthetic enamel
View Details
Trailer Jetting Machine, JM-3000
