vacuum
MANIAR ‘GullyMan’ is an advanced technology with a blow-back system for cleaning cesspit, cesspool and manhole chambers. This Machine is capable of creating a very high degree of air pressure which breaks the silt sedimentation that gets accumulated at the bottom of the cesspit, cesspool and manhole chambers. It is equipped with major IMPORTED components including its unique heavy duty Vacuum Pump. It is capable of sucking particles up to 40 to 50mm dia along with sludge from a distance of 100 feet and depth up to 25 feet. The tank can be tilted (optional) at a specified angle and the hinged type rear door can be opened and closed hydraulically to drain out the collected liquid waste or silt. Utmost care has been taken to install adequate safety devices such as Auto shut-off valves, Imported Siphon filter, Safety pressure release valve, Quick release coupling are few safety features among those safety instruments, which ensure that the equipment operates with safety & avoid chances of occurrences of an accident.Vehicle: TATA, Eicher, Ashok Leyland. 11 TonnerSludge Tank Capacity:  6000Material: Mild Steel of 5 mm thicknessSuction Pump: Imported Italian makeCapacity: 390 m3/hPower for Vacuum Pump: Is taken from Side PTO / Split shaft PTO.Suction Hose dia: 3
Suction Machine, GM-6000
VIEW DETAILS
MANIAR ‘GullyMan’ is an advanced technology with a blow-back system for cleaning cesspit, cesspool and manhole chambers. This Machine is capable of creating a very high degree of air pressure which breaks the silt sedimentation that gets accumulated at the bottom of the cesspit, cesspool and manhole chambers. It is equipped with major IMPORTED components including its unique heavy duty Vacuum Pump. It is capable of sucking particles up to 40 to 50mm dia along with sludge from a distance of 100 feet and depth up to 25 feet. The tank can be tilted (optional) at a specified angle and the hinged type rear door can be opened and closed hydraulically to drain out the collected liquid waste or silt. Utmost care has been taken to install adequate safety devices such as Auto shut-off valves, Imported Siphon filter, Safety pressure release valve, Quick release coupling are few safety features among those safety instruments, which ensure that the equipment operates with safety & avoid chances of occurrences of an accident.Vehicle: TATA, Eicher, Ashok Leyland.Sludge Tank Capacity:  5000Material: Mild Steel of 5 mm thicknessSuction Pump: Imported Italian makeCapacity: 390 m3/hPower for Vacuum Pump: Is taken from Side PTO / Split shaft PTO.Suction Hose dia: 3
Suction Machine, GM - 5000
VIEW DETAILS
MANIAR ‘GullyMan’ is an advanced technology with a blow-back system for cleaning cesspit, cesspool and manhole chambers. This Machine is capable of creating a very high degree of air pressure which breaks the silt sedimentation that gets accumulated at the bottom of the cesspit, cesspool and manhole chambers. It is equipped with major IMPORTED components including its unique heavy duty Vacuum Pump. It is capable of sucking particles up to 40 to 50mm dia along with sludge from a distance of 100 feet and depth up to 25 feet. The tank can be tilted (optional) at a specified angle and the hinged type rear door can be opened and closed hydraulically to drain out the collected liquid waste or silt. Utmost care has been taken to install adequate safety devices such as Auto shut-off valves, Imported Siphon filter, Safety pressure release valve, Quick release coupling are few safety features among those safety instruments, which ensure that the equipment operates with safety & avoid chances of occurrences of an accident.Vehicle: TATA, Eicher, Ashok Leyland. 7 Tonner VehicleSludge Tank Capacity:  4000Material: Mild Steel of 5 mm thicknessSuction Pump: Imported Italian makeCapacity: 390 m3/h Power for Vacuum Pump: Is taken from Side PTO / Split shaft PTO.Suction Hose dia: 3
Suction Machine GM-4000
VIEW DETAILS
Cleaning of underground drainage/sewage lines and manholes and wet wells has always been a challenging job for the Municipal Authorities due to its involvement and concerns of human life. Municipal Authorities are somewhat relieved with the innovations of high pressure jetting machines and suction machines by which the chocked drainage/sewage lines can be easily cleaned without having the person to enter into sewage lines keeping their lives always at risk. Even though, as on now, Municipal Authorities are dependent on manpower when it comes to cleaning / de-silting of manholes and wet wells and is still an unsolved problem.It has become more challenging with the implications of the directives of the Hon’ble supreme court directing all the municipalities to avoid manpower entering into the manholes and wet wells for its cleaning and to explore the possibilities of using mechanized vehicles and equipment for this purpose.Keeping the above facts in mind the Research & Development wing of Maniar has been able to design and develop advanced and highly innovative machine “D' siltman”.“D Siltman“ Hydraulic operated cum winch Drive De-Silting Grab Bucket System developed on 3 & 4 Wheeler is the ideal solution for cleaning of manholes and wet wells. The machine can easily and effectively collect silt/ sludge from the depth of 30 to 50 feet or more with the help of a lever control without having the person to enter manholes and wet wells. The fully equipped machine is provided with Telescopic Extendable Boom for extended reach, a rear hopper to avoid multiple handling of the sludge, as the sludge can be collected in the rear hopper of the vehicle and can be hydraulically emptied in big containers. Since it is developed on 3 & 4 Wheeler, it can easily move in narrow lanes, bylanes. It is economical and available at the optimum price. D’siltMan does more or less all the operation of Super Sucker / Deep Suction machine at a very cost-effective price.Vehicle: TATA / MAHINDRA/ ASHOK LEYLANDPrime mover: Power required for the hydraulic system is taken from vehicle’s engine through PTO / belt drive.	Max traveling depth:  32 ftSafe load to be lifted: 20 kgSwing angle: 90 degrees on both sideBoom lifting angle: 45 degreeBoom extension: Manual.Grab Bucket: Moulded seamless steel cast side jaws. Galvanized grab fork Capacity: 20 kg Material : 8 mm thick molded MS cast Hose Reel 	Type: Hydraulic operatedHydro motor 	Make: Reputed  make Control valve 	Make: WALVOIL or equivalent makeOil tank 	Capacity: 20 liters approx.Hopper 	Capacity: 0.5 cu.mMaterial: 16g galvanized sheet.Loading height: 1320 mm approx.Unloading height: 1185mm approx.Paint: Two coat of zinc-based red oxide            Two coat of synthetic enamel
D'SILTMAN
VIEW DETAILS

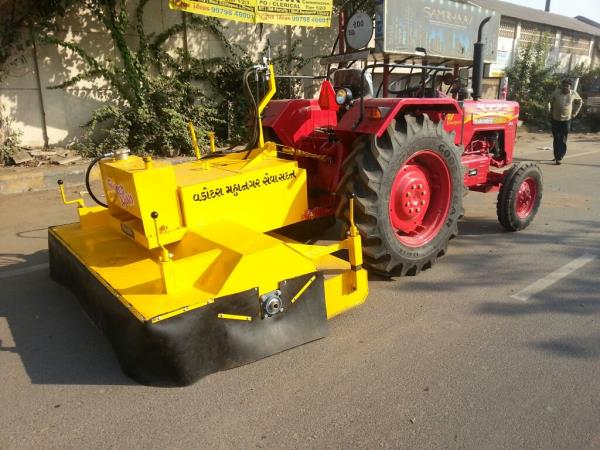

Tractor Drawn Sweeper machine is useful for cleaning streets. Mechanical Sweeper which has a main broom at the center which collects the dust in the collection box.The mechanical sweeper has no limitations and collects leaves, paper, metal cans and even gravels.Power required is taken from Tractor's PTO shaft at Rear.Sweeping Width: 1800mm Centre Brush Material: Steel Wire Brush.Brush Diameter: 450 mmDust Collection Box Capacity: 0.16 CUMMaterial: 3 mm MS materialCaster Wheels: At rear for setting according to brush contact on the road.Paint: Two Coat of Zinc Primer            Two Coat of Synthetic enamel.
Mechanical Road Sweeper
VIEW DETAILS
The truck-mounted combined suction-cum-jetting unit is capable of desilting and de-choking civil/industrial drains and sewer lines of diameters 200 mm to 900 mm and more. De-choking and de-silting of the sewer and drain water lines and chambers will be carried out by the High-Pressure Jetting System working on the principle of hydrodynamic cleaning by injecting high-pressure water into the lines through a suitable dimension sewer jetting hose and special cleaning nozzles. Aspiration of the effluent from sewer and drain water lines and chambers will be carried out on the principle of generating a high vacuum in the sludge compartment for syphoning out effluents, liquids slurry, sludge and other materials from depths of about approximately 6 to 7 meters, depending on the specific gravity of the effluent. The equipment will extract the sludge and slurry under high vacuum through a suction hose connected to the tank by a quick release hose coupling. The contents of the sludge tank will then be transported to any desired destination for disposal and emptied by means of gravity/pressure discharge. SPECIFICATION:Vehicle: TATA, Ashok Leyland, Eicher 7 Tonner 3800 wheelbaseGVW: 7 TonnerWheelbase: 3800 mmTotal Tank Capacity: 4000 LitreFresh Water Tank: 2000 LitreSludge Tank: 2000 LitreMaterial: 5mm Thick M.S material.Tank Tipping: HydraulicPTO: Heavy duty full torque PTO.Jetting Pump: Triplex plunger pump, Imported make.Capacity: Flow rate 137 LPM and pressure up  to 140 barJetting Hose: POLYHOSE  or equivalent, special high-pressure Sewer Jetting Hose.Hose I.D.: 19.7 mmLength: 60 metersHose Reel: The hose reel is designed to hold 120 meters long hose. The reel is driven by hydraulic power in both directions.Washing hose: Polyhose or equivalent make 12.7mm I.D X 10  meters long washing hose is provided.Handgun: Imported make spray gun, which can withstand the pressure up to 300 bar. It is very useful for cleaning equipment /container cleaning and also useful for cleaning of toilets/roads/street areas etc.Suction Filter: Y-type suction filter.Nozzle: •	Bullet nose with front and rear jets-1 no•	Bullet nose with rear jets -1 noAccessories and Safety Device: •	Heavy duty glycerin field 100mm dial pressure gauge•	Flexible water level indicator•	Audio / visual type water level alarm•	Spring loaded adjustable pressure relief valve Suction UnitVacuum Pump: Imported make rotary vane pump Capacity: 492 cum/hrSuction Hose: Heavy duty PVC suction hose.Size: 100 mm diameter X 15 metersDischarge Valve: 100 mm Ball Valve.Rear Door: Spunned dish end with a knuckle radius hydraulically operated rear door for cleaning purpose having an airtight heavy-duty rubber gasket.Primary shut off Valve: It is provided inside the tank body to prevent the water entering into the vacuum pump due to overflowing of the tank.  Secondary Shutoff Valve: It is provided to the inlet of the suction pump to prevent water /slurry entering into the pump.Quick Coupling: Imported Make of sufficient diameter to connect the hose.Compound Gauge: 100 mm dial gauge, pressure range from0-4 kg/cm2, vacuum range from 0-760 mm of HG.Hydraulic System: Power required for the hydro motor for winding and unwinding of hose reel and tipping of tank is taken from vehicle’s engine via a hydraulic pump.Paint: 2 Coats of Epoxy paint            2 Coats of PU paint
Jetting Cum Suction Machine, CM-4000
VIEW DETAILS
