Description
Aerial Work Platforms were developed for maintenance purpose. These platforms have both vertical height as well as horizontal outreach. Platforms are available from 9.5-meter working height to 42 meters working height. These platforms can be mounted on the 1-ton chassis to 25-ton chassis. All the platforms are made looking at the safety of the person. The platforms are designed as per EN280 standard. 3kV insulated bucket is provided for electrical maintenance purpose.

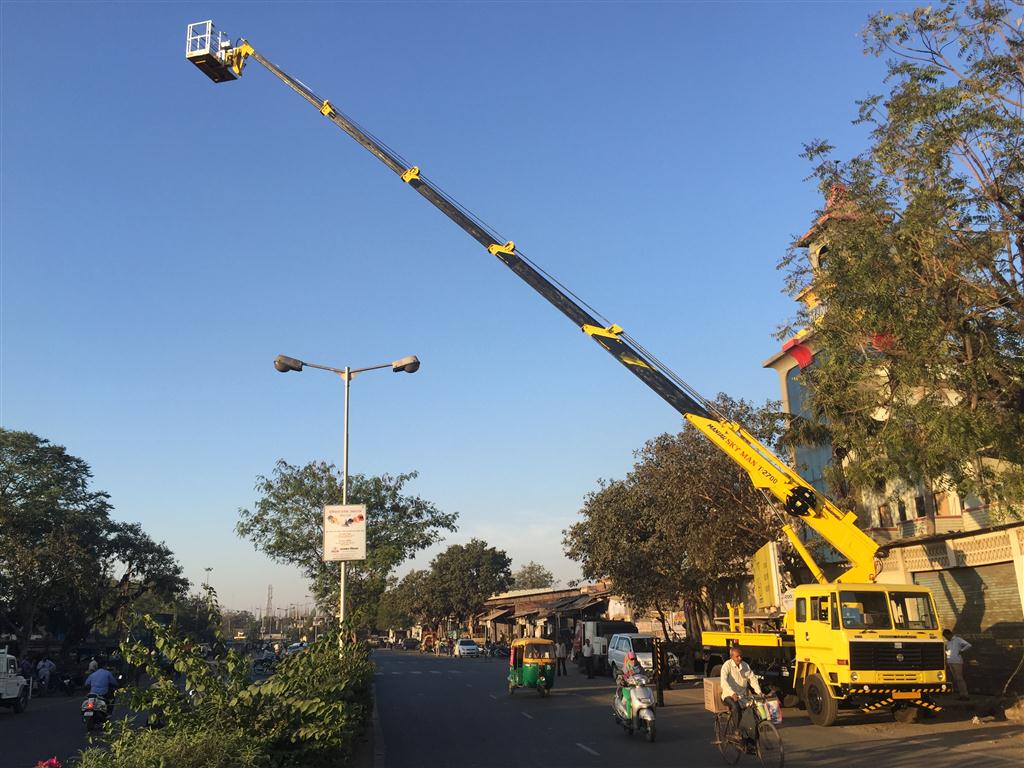

Telescopic Platforms are available from Height of 20 meters to 42 meters working height.
Specification
Working Height: 11, 15, 17, 20, 25, 27, 30, 35, 42 meters
Working Outreach: 5.5, 6.5, 9, 10, 16 meters
Slewing: 360 degrees
Safe Load: 200 kgs
Cage Type: FRP / Aluminum
Cage size: 1.0 X 1.06 X .77 m
Booms: From High Tensile Steel.
Stabilisers: 4 Nos.hydraulic extendable
Leveling: Hydraulic Leveling
Controls: Dual Controls. Basket and Base
Emergency Hand Pump in case of Power Failure.
Wireless remote control (Optional)
Slewing restriction interlock
Boom to Stabilisers interlock
Turn over prevention interlock
Vehicle Auto Levelling (Optional)
Digital cage load display system (Optional)
