Home Products Trailer Mounted Suction Machine, GM-3500T
MANIAR ‘GullyMan’ is
MANIAR ‘GullyMan’ is
Liquid Waste Handling by Maniar

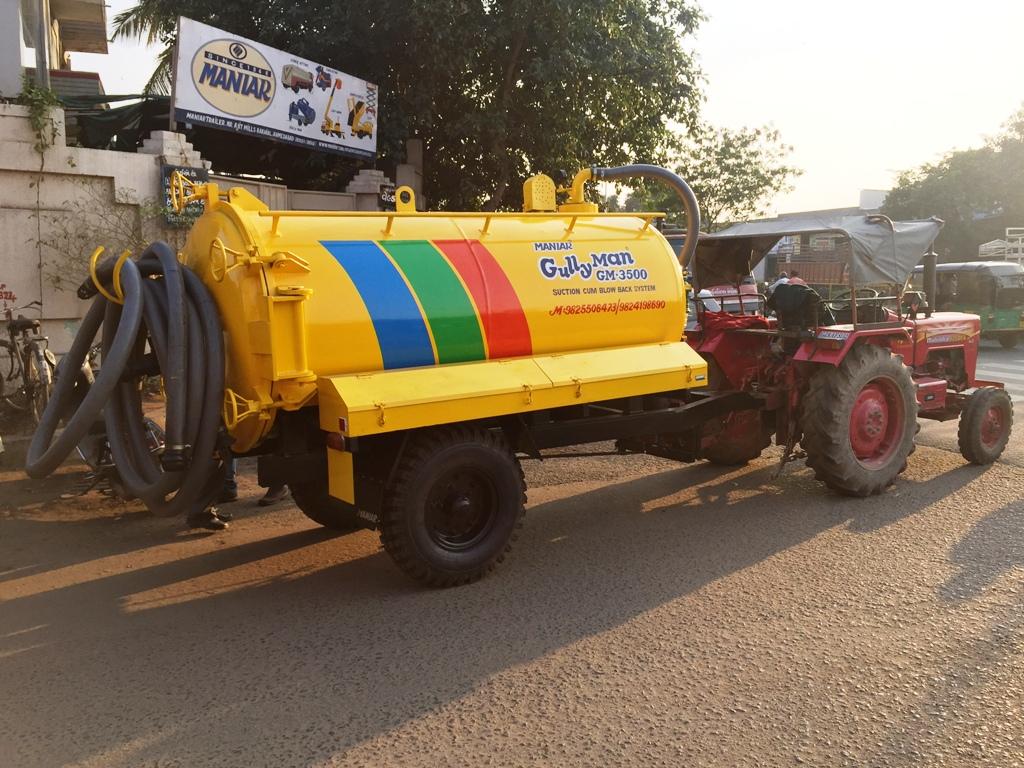

Trailer Mounted Suction Machine, GM-3500T

Share with
Share this on :

Description

Product details

MANIAR ‘GullyMan’ is an advanced technology with a blow-back system for cleaning cesspit, cesspool and manhole chambers. This Machine is capable of creating a very high degree of air pressure which breaks the silt sedimentation that gets accumulated at the bottom of the cesspit, cesspool and manhole chambers. It is equipped with major IMPORTED components including its unique heavy duty Vacuum Pump. It is capable of sucking particles up to 40 to 50mm dia along with sludge from a distance of 100 feet and depth up to 25 feet. The tank can be tilted (optional) at a specified angle and the hinged type rear door can be opened and closed hydraulically to drain out the collected liquid waste or silt. Utmost care has been taken to install adequate safety devices such as Auto shut-off valves, Imported Siphon filter, Safety pressure release valve, Quick release coupling are few safety features among those safety instruments, which ensure that the equipment operates with safety & avoid chances of occurrences of an accident. Tractor-drawn Trailer. Tyre: 7.50 X 16 Axle: 65 X 65 mm sq. bar Brakes: Internal expanding shoe brake acting on both wheels. Sludge Tank Capacity: 3500 Tank Mounting: Tank is mounted in a slope so that the sludge can be discharges by gravity or by pressurized discharge. Material: Mild Steel of 5 mm thickness Suction Pump: Imported Italian make Capacity: 216 m3/hr Power for Vacuum Pump: PTO of the Tractor. Suction Hose dia: 3" Suction Hose Length: 15 meters Material: Heavy Duty PVC hose Suction Valve: 3" Ball Valve Drain Valve: 3" Ball Valve Rear Door Locking: Mechanical Primary shut off valve: Yes Secondary shut off valve: Yes Pressure Relief: Yes Quick Coupler: Yes Compound gauge: Yes Level Gauge: Yes Paint: 2 Coats of Primer 2 Coats of PU paint
