Description
Product details

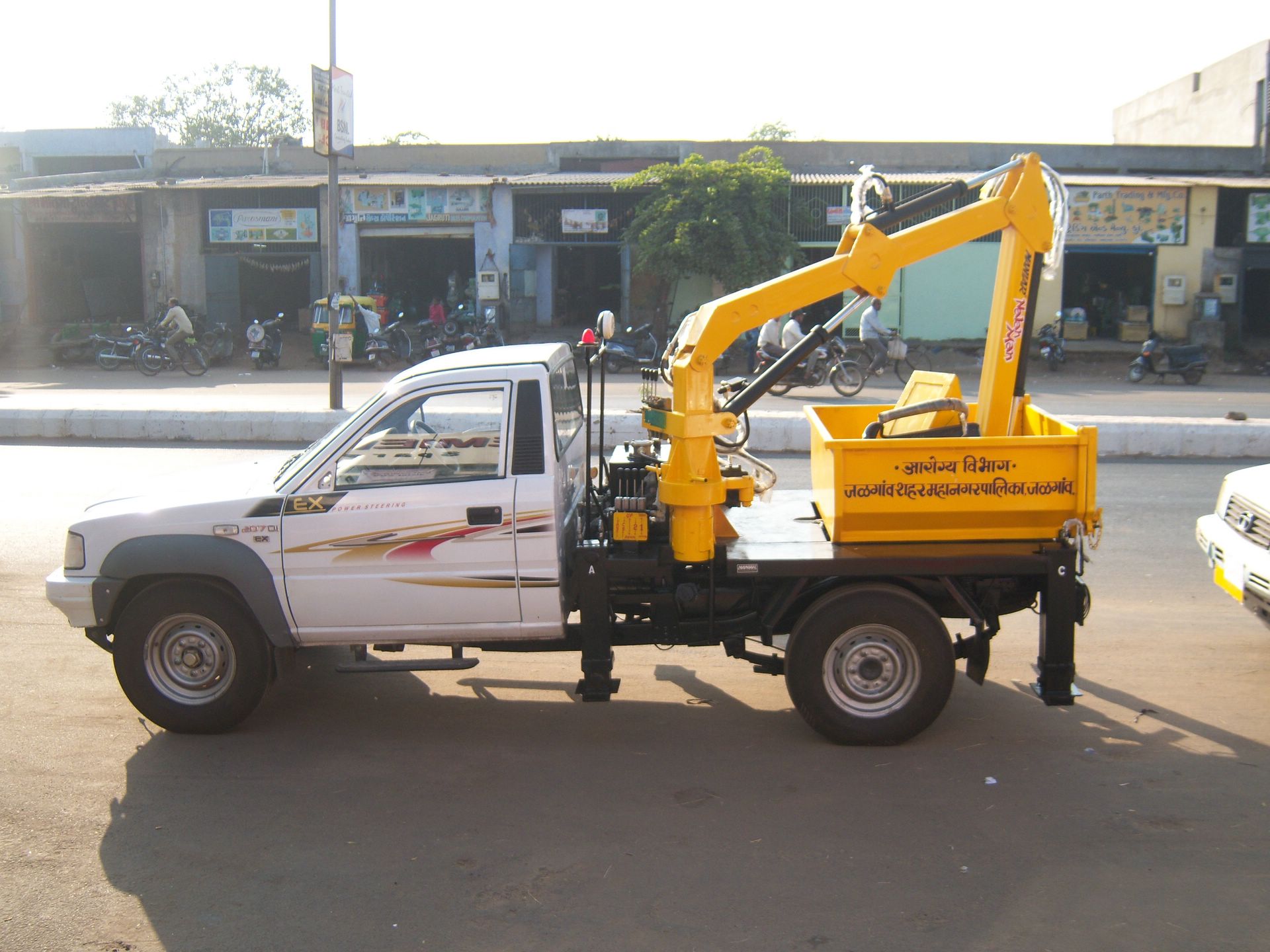

Specially designed open ditch cleaning machine capable to clean open drain. The unit is provided with ditch bucket by which silt can collected into the hopper The silt collected by the hopper is directly emptied into the container/trailer body so that the re handling of silt is avoided. Max. Depth below Ground Level - 1.5 meters Max outreach - 3.3 meter Maximum Lifting Height - 4.4 meter Lateral Box Extension - 800 mm Bucket Capacity - 50 Liters Base Structure : Side hoe type box section arrangement having hydraulic telescopic boom extension up to max 800 mm. Boom & Column: Made from MS box section pivoted with wide pivot bushes and pins. The whole structure is mounted on heavy duty turn table assembly. Bucket: 50 kg capacity, bucket width-300mm suitable for ditch cleaning. Hydraulic Cylinders: Double acting hydraulic cylinders having precision honed M.S tubes and induction hardened deep grounded chrome plated piston rods providing smooth operation, long steel life and resistance against corrosion. Hydraulic Pump: Dowty or equivalent makes gear pump having suitable capacity. Hydraulic Drive: Hydraulic pump drive is taken from vehicle’s engine. Controls: Lever operated controls are provided near operator’s seat. Stabilizers: Four numbers Hydraulic operated stabilizer Slewing: 90 degree slewing by hydraulic operated double acting cylinder
